Diesel Injector Nozzle Tester Eco 600 Bar

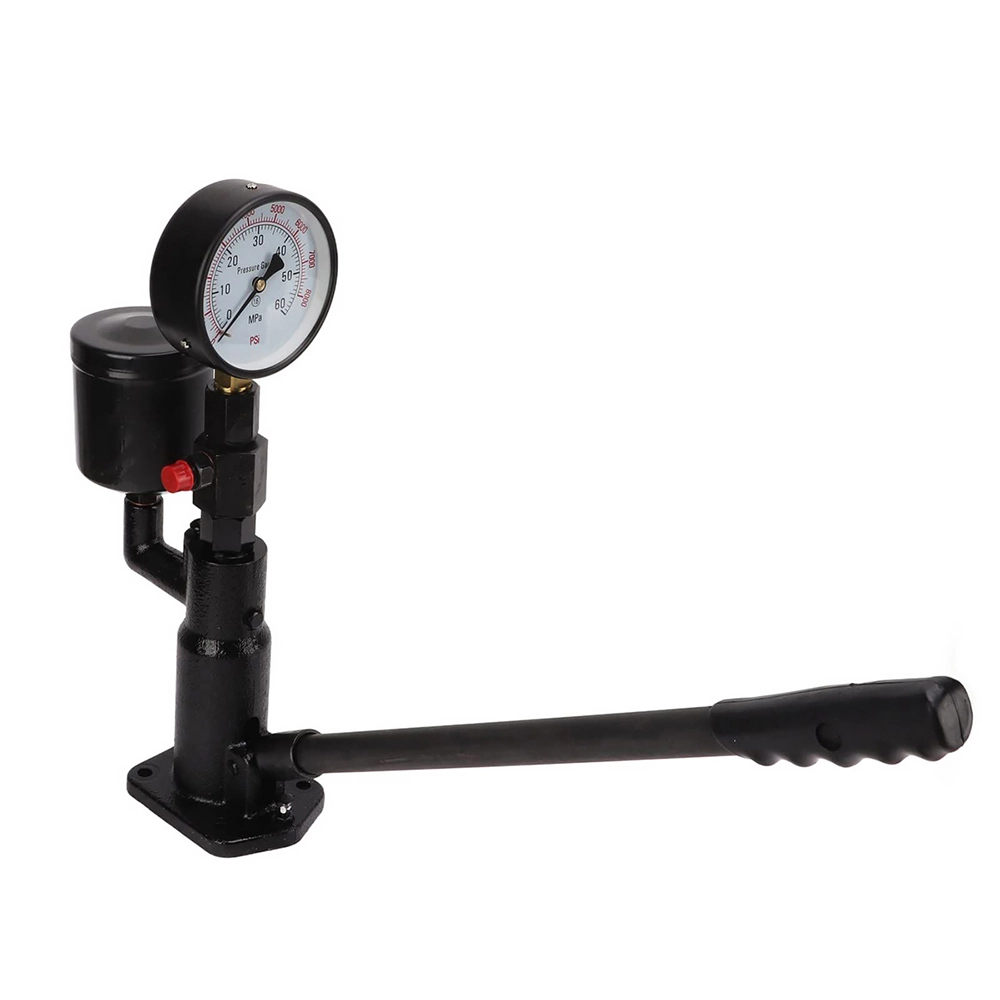

DIESEL INJECTOR NOZZLE TESTER ECO

The Nozzle Tester is a practical and durable testing device designed to accurately evaluate the performance of injectors and spray nozzles. Thanks to its ergonomic design and integrated pressure gauge, pressure values can be monitored in real time, ensuring precise measurements.

The device is ideal for testing spray patterns, sealing performance, and opening pressure. Its robust metal construction provides long service life, while the compact design allows for easy use in workshop environments.

Key Features

• Analog pressure gauge for precise pressure measurement
• Ergonomic and easy-to-grip hand pump
• Durable and long-lasting metal body
• Optimized design for nozzle spray testing
• Easy operation with fast and reliable results

Applications

• Diesel injector testing
• Nozzle spray inspection
• Automotive service and maintenance workshops
• Technical testing and quality control processes

Technical Specifications

• Pressure Gauge Range: 0 – 60 MPa
• Maximum Test Pressure: 40 MPa
• Overall Dimensions (L × W × H): 160 × 100 × 380 mm
• Fuel Tank Capacity: 0.8 L
• Net Weight: 5.8 kg

Accessories

High-pressure pipes:

• M14 × 1.5 / M14 × 1.5
• M14 × 1.5 / M12 × 1.5

Maintenance & Usage Notes

• Calibration oil must be clean and of high quality
• Light diesel fuel should not remain in the device for more than 48 hours
• Fuel should be filtered during filling, and the tank must not be overfilled
• The device should be cleaned after use and protected from dust
• During testing, the pump handle should be operated in a controlled and balanced manner
